Movable Silence Booth
A private, productive, and comfortable
place creates creativity. Various sizes are
suitable for many environments, from
office, hospitality, and medical to music.
TUV.SUD Certification
FSC Certification
UL Certification
CE Certification
ISO Certification
FULLY CERTIFIED & TESTED

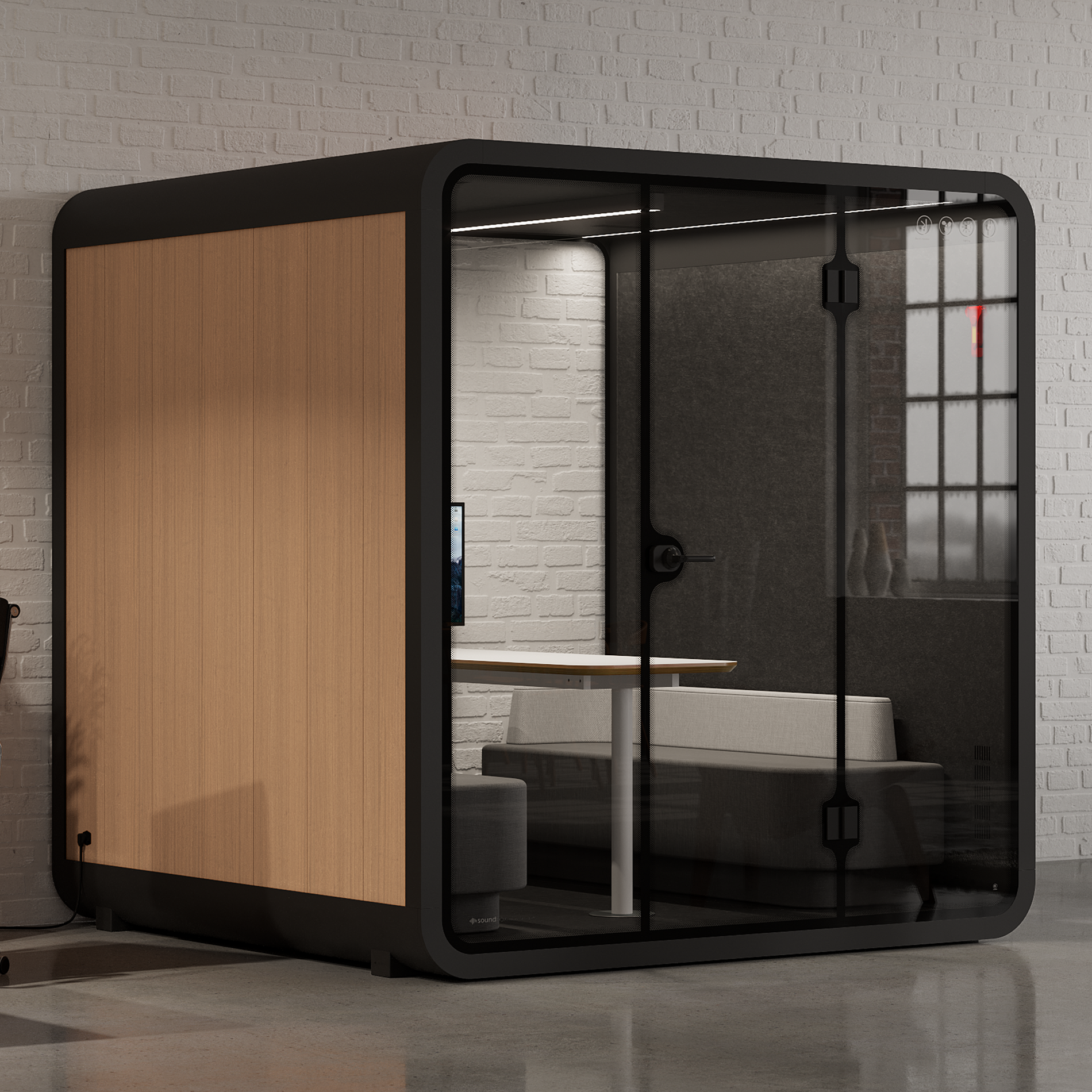

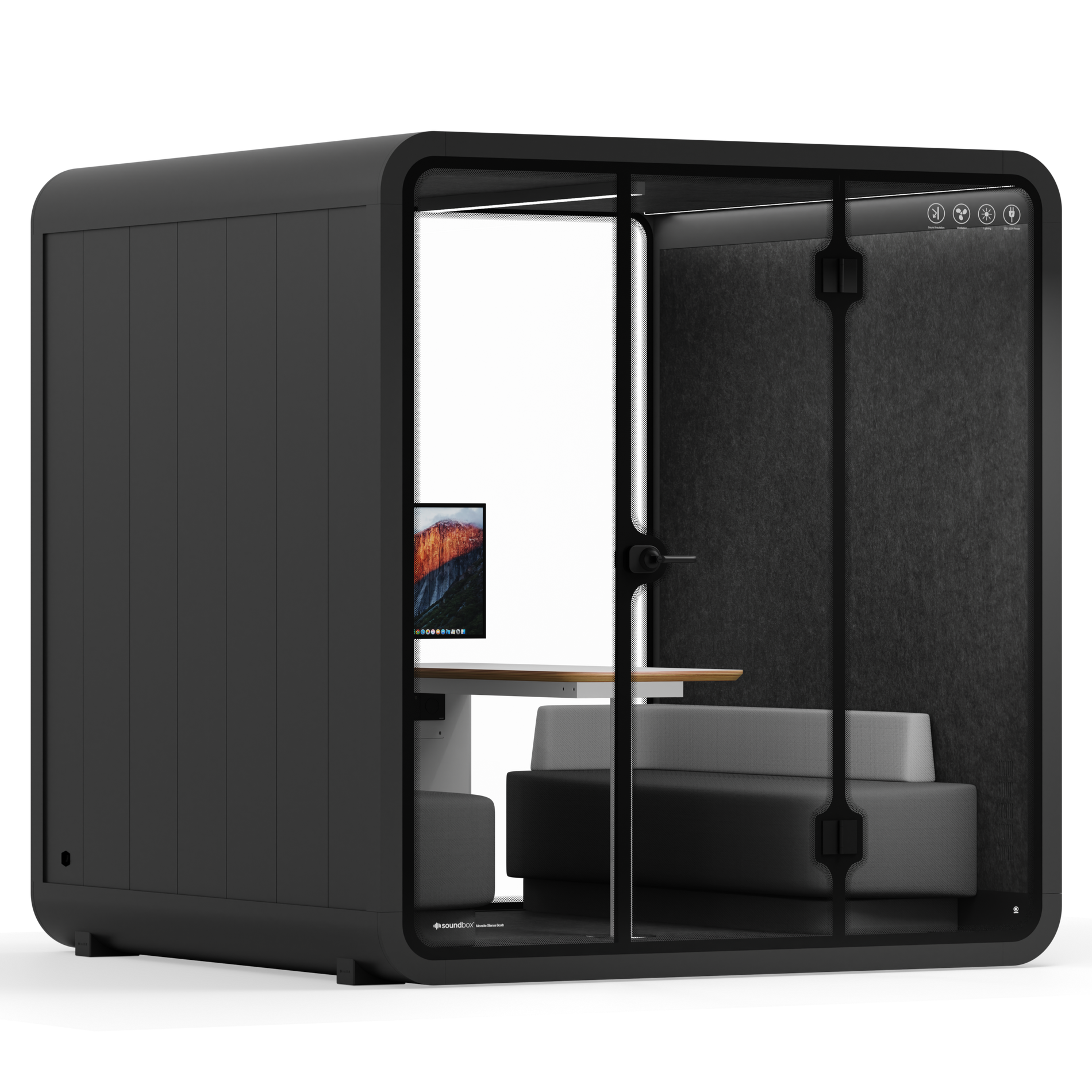

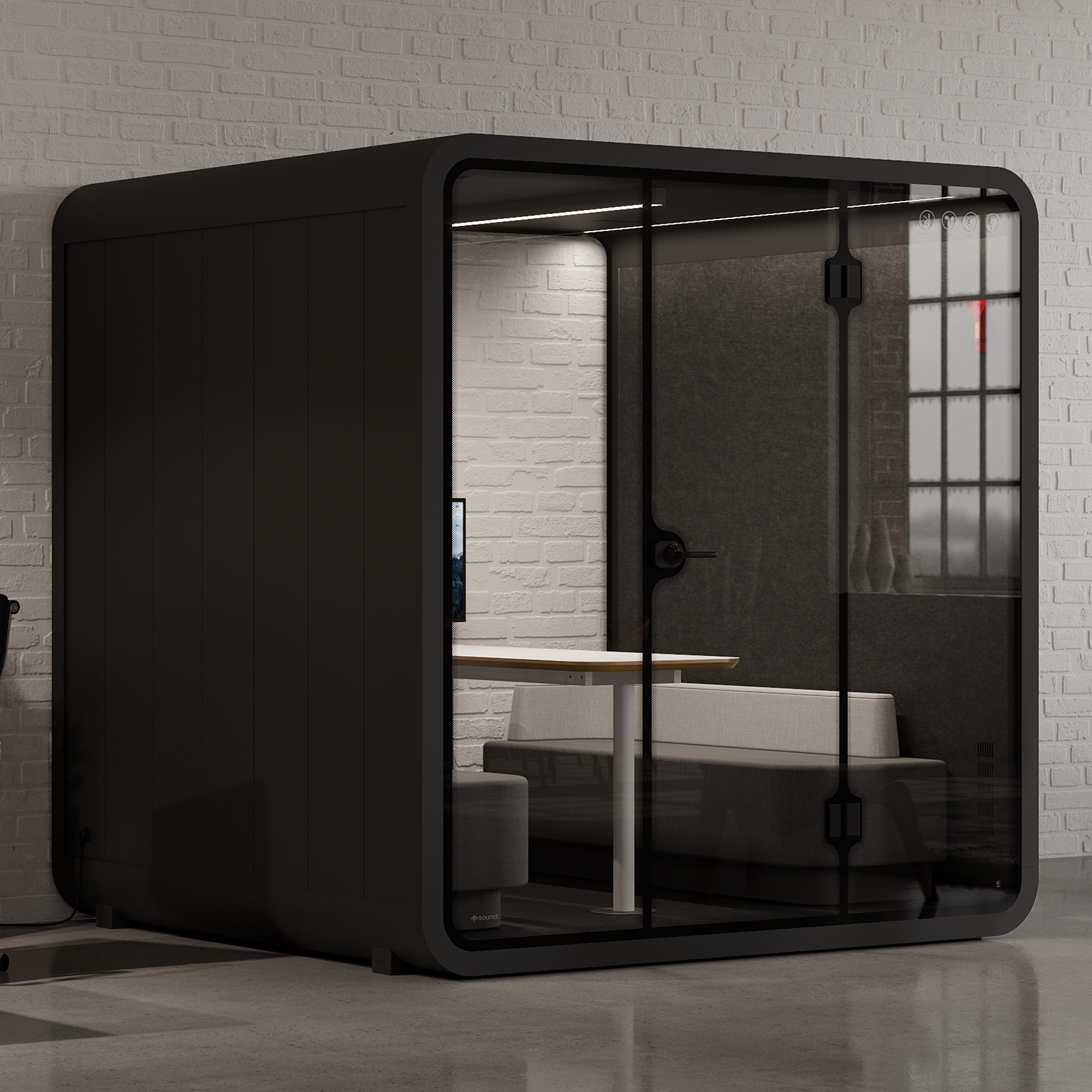

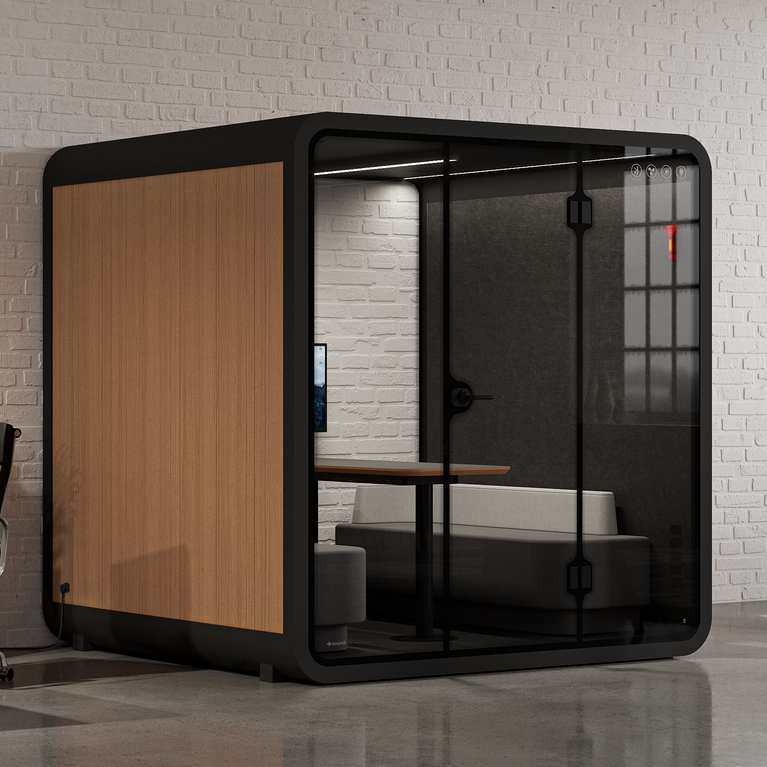

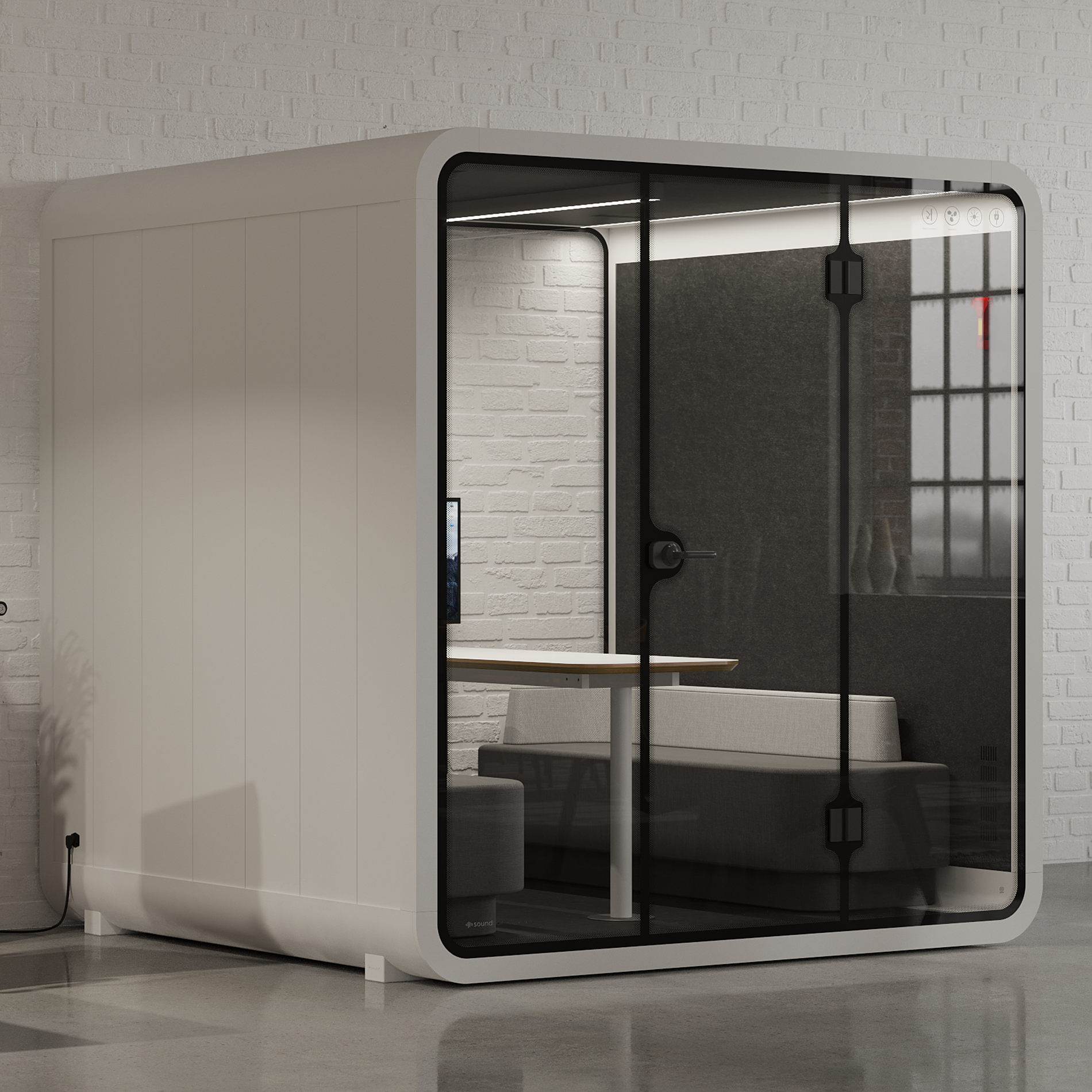

Office Meeting Booth
Our meeting booth 6-person spacious meeting booth with top-of-the-line acoustic properties. Equipped with a dual silent ventilation system, this acoustic meeting booth offers industry-leading airflow to ensure a comfortable and distraction-free environment. The booth is designed to inspire your team and help them focus on the task at hand, with minimal internal and external acoustic influence.
Inside, the environment is well-aired, cool, comfortable, and spacious, making it the perfect place for conference calls, private meetings, or group Zoom calls. The furniture options include quality sofas and tables, and you can opt for a monitor stand (Monitor not included).
The booth itself is fabricated from aviation-style alloy and full toughened glass, ensuring durability and strength. To further enhance the acoustic properties, the internal walls are lined with PET sound acoustic panels.The booth comfortably seats four people for conference calls, private meetings or group zoom calls. The furniture options are quality sofas and tables, with an optional monitor stand (Monitor not included). The booths are fabricated from aviation-style alloy, full toughened glass, and internal PET sound acoustic panels.

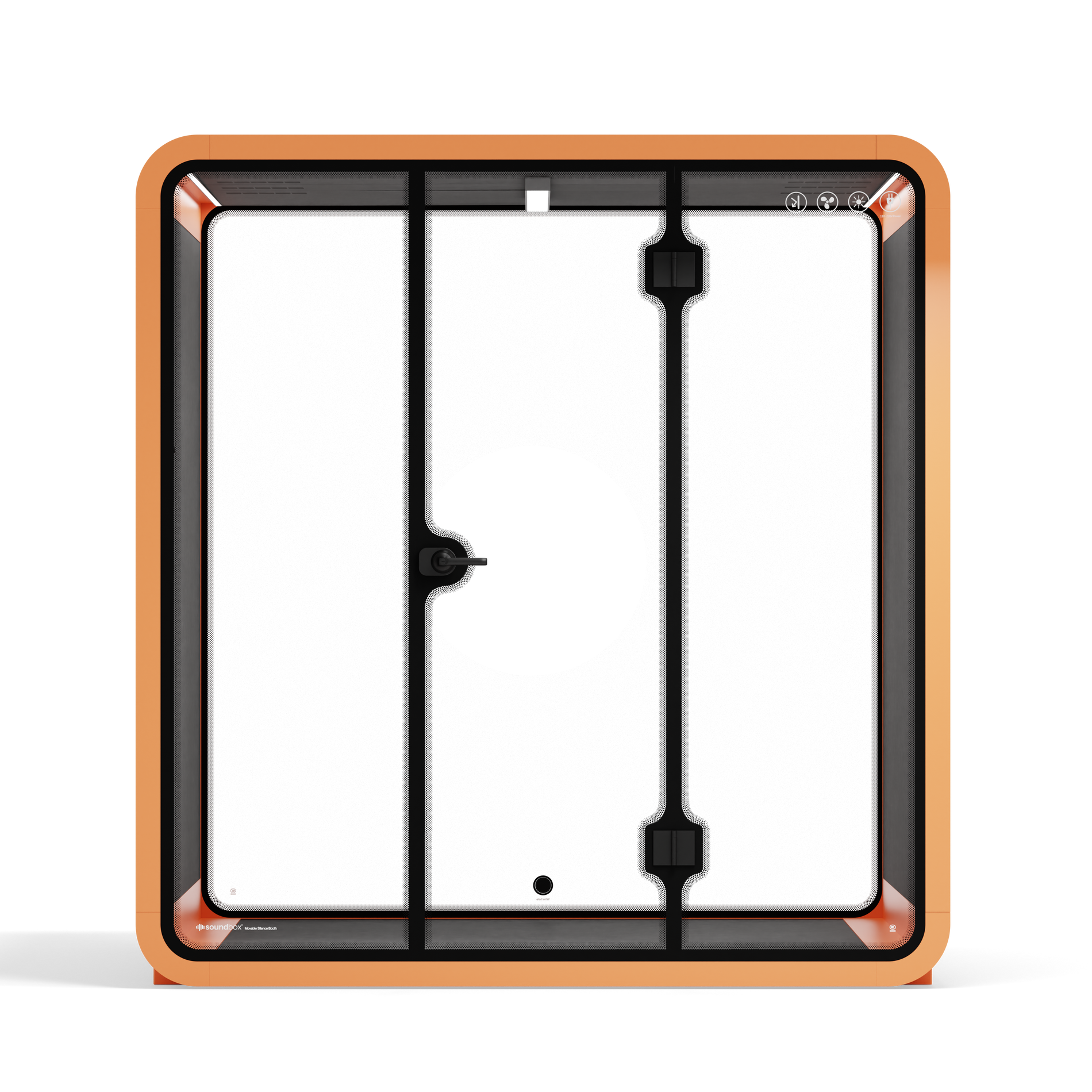

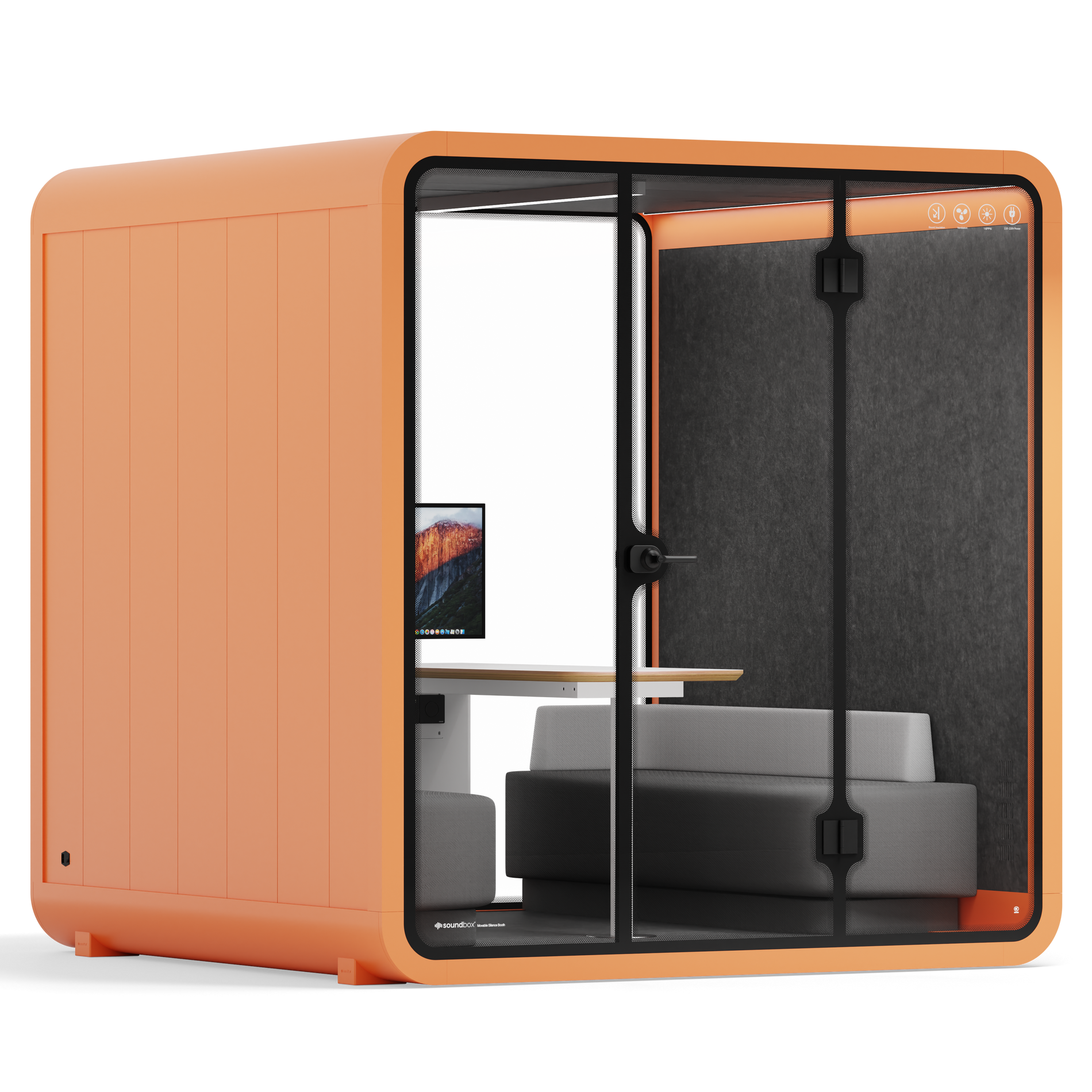

Close door

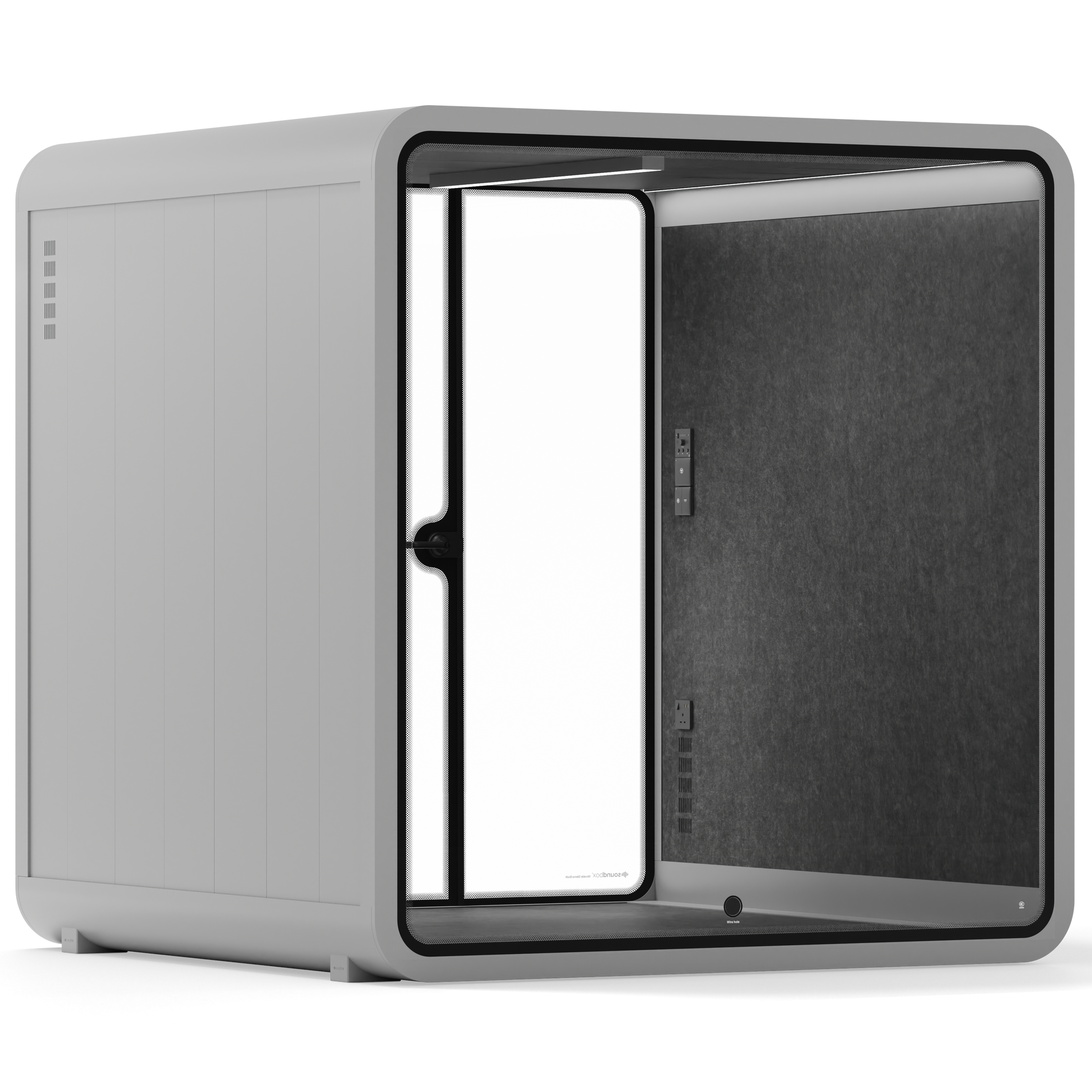

Open door
Experience This Phone Booth Yourself
Dimensions and details
Internal Size:
Height: 214cm Width: 204cm Depth: 210cm
External Size:
Height: 230cm Width: 220cm Depth: 213.6cm
Weight:
Total: 680kg (Pod)
Total: 833kg (Pod+Furn. Set 1)
Total: 761kg (Pod+Furn. Set 2)
Leading The Sound Pod Industry
STC 30dB (±5dB) &
RT0.25s (±0.1s)
Daiki Verified
ISO 23351-1
External Frame
Aviation Type Alloy, Cast Aluminium Corners
Nanometer PP Finish
External Panels
Carbon Composite
≤0.071kg CO2e
Glass
10mm Tempered Glass Front & Back, Similar To High Speed Trains ≤0.4MJ
Damping Feet
Vibration control
Internally
Acoustic PET board (Recycled Plastic Bottles)
Double Turbo Fan / 4 Inlet + 2 Outlets, Highly efficient airflow change rate at 551 m³/h (max) refreshing air every minute, guaranteeing excellent oxygen rates. A low-noise air system via multi-channel air ducts allows minimum noise disturbance inside and out.
LED
*Square 4000k, 50Lx, Daylight
*Side Strips 4000k, 50Lx, Daylight
*Multiple Power Outlets, 220- 24V USB, USB-C
*Energy Saving Motion Sensor
*Ethernet (Cat 6) Connector
*Bluetooth Audio System

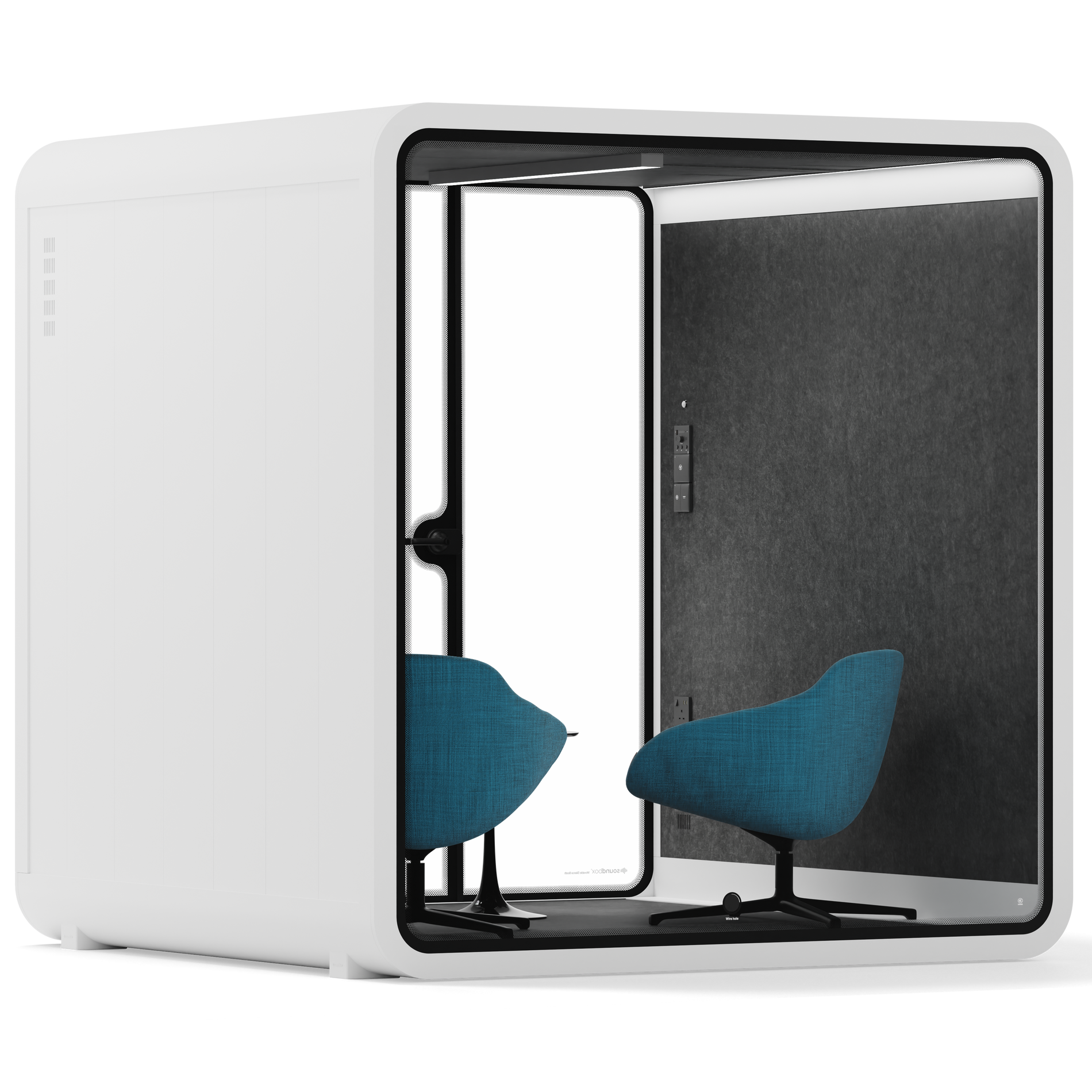

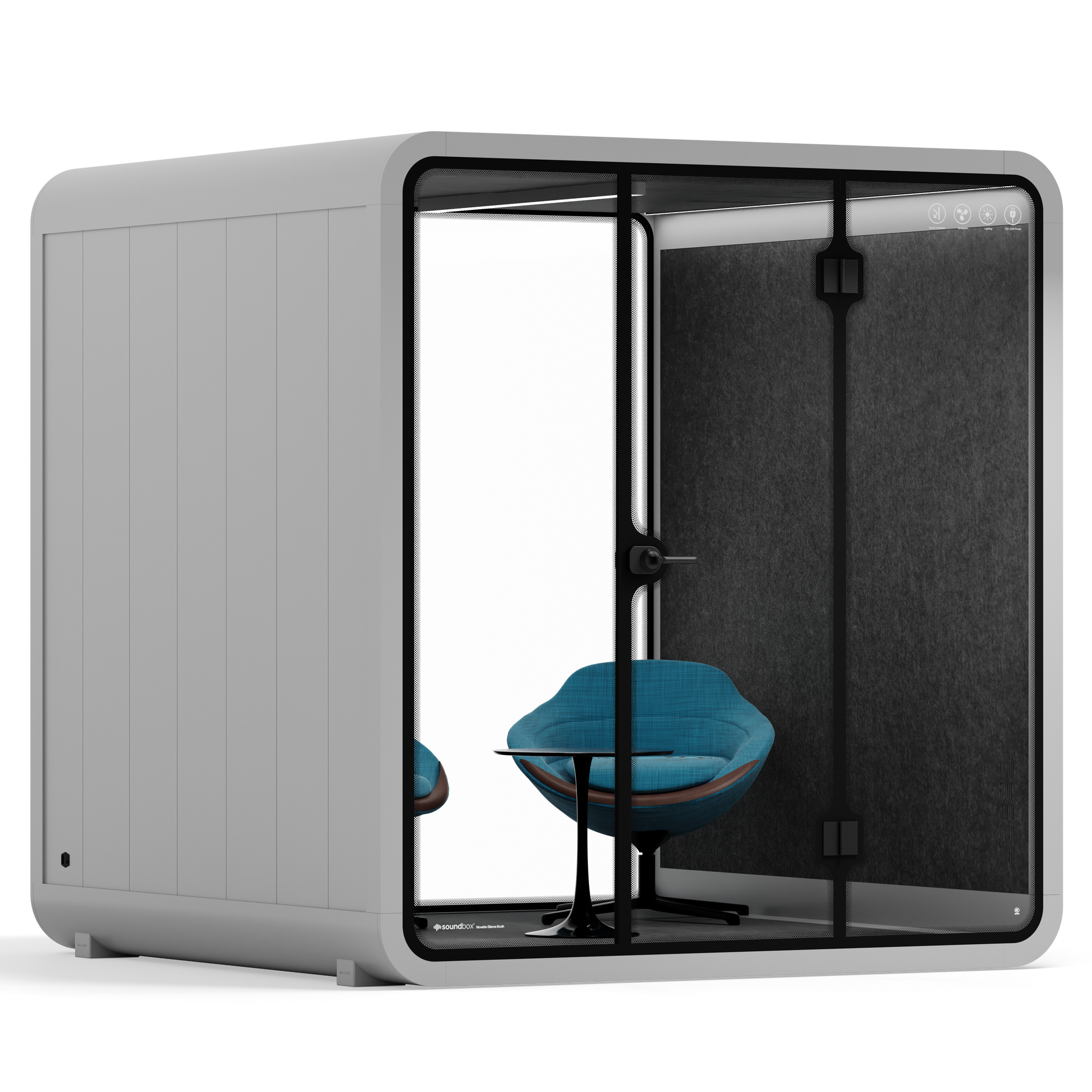

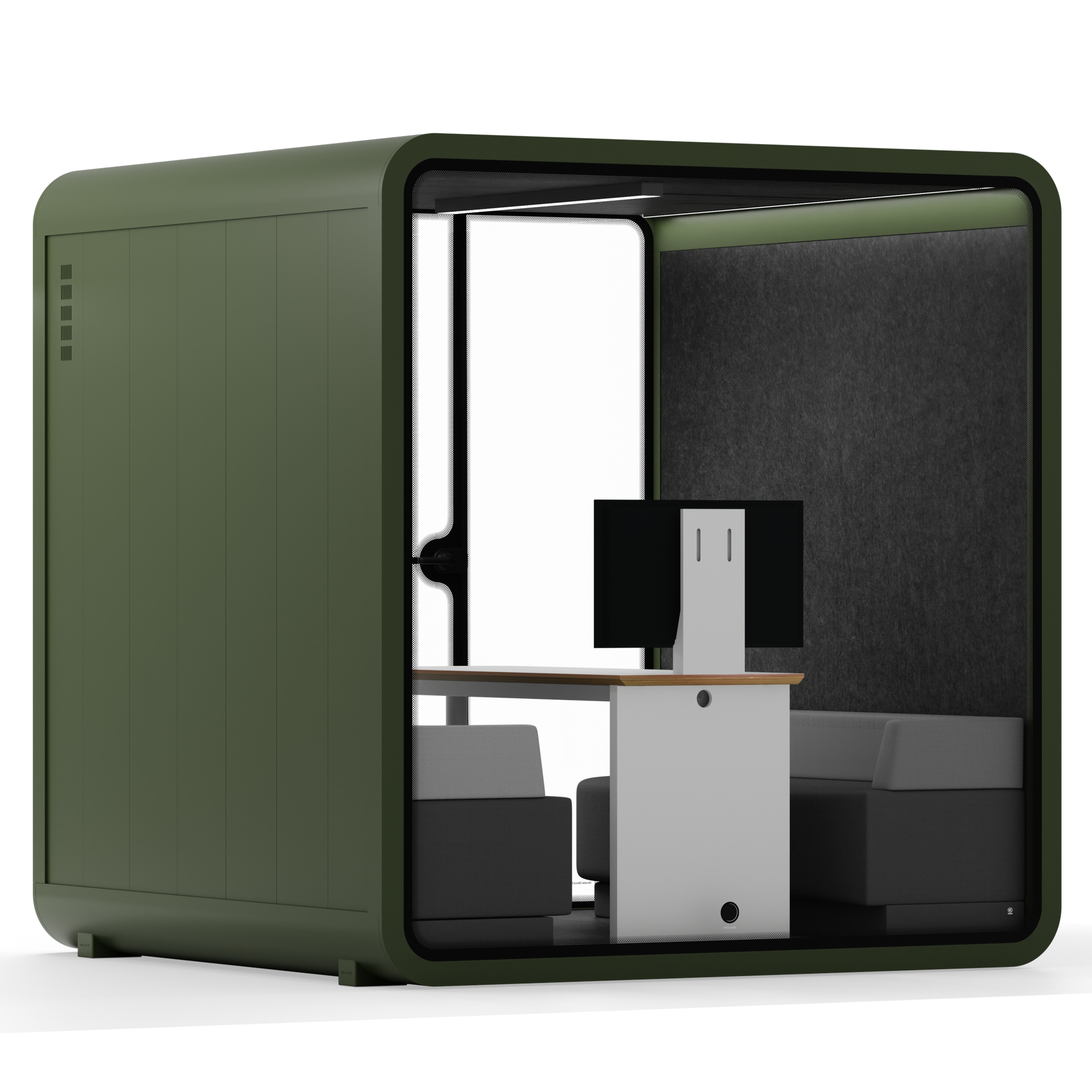

Optional Sofa, Table and Monitor stand available. Furniture specifically built for these pods is an excellent option for functionality comfort and style whilst allowing maximum space without feeling crowded. *monitor not included.
Emergency Safety Hammer
Included For Internal Fitting
Fire Rated Foam
UK Fire foam where required.
Sprinkler / Mains Fire Alarm
Laser cut (25mm) and usable if required
Formaldehyde Free
No wood or glue
Recycled materials approx
≥180kg (12m²/0.66m³) each
Carbon Footprint
≤0.071kg CO2e
Energy Consumption
≤0.4MJ
Mindful In Design
Primarily an acoustic control company, technically engineers; design-wise, we are creators. Our furniture packs have been developed over years of trials and customer feedback: functional, comfortable, and organic design. Whilst still maintaining hardwearing upholstery, build quality and finish.
New, Upgraded Lighting
Quell Design now offers as standard additional LED strip lighting 4000k 50Lx Daylight, neatly designed on either side of the meeting and conference booths. Powered separately from the leading central light-creating task or ambient lighting.
New - Turbo Fan System
Introducing the new Turbo Fan, sleeker in design with more airflow, creating ample comfort and a refreshing environment.
Power + Bluetooth
UL & CE Certificated
Bluetooth Control System with speaker, connect devices for calls, zoom calls or music.
Switches for LED lighting and ventilation power.
Motion Sensor - Only use power when in use.
1 * 220-240 Power Socket UK/ EU
2 * USB DC 5V, 2.1A.
1 * USB-C DC 5V, 2.1A.
* Twice as many power outlets with furniture option.
Ground Breaking Tech
Quell Design is a fully engaged company focusing on the highest technological advancements, creating highly efficient, creative, focused work environments, and continually striving for excellence in technology and acoustic engineering.
A Comfort Cocoon
Acoustics-controlled environments develop motivation, well-being, mindfulness, productivity, and focus.
62%
Increase work motivation
44%
Increase the ability to focus
52%
Increase performance in tasks that require full concentration
29%
Reduced pressure level
55%
Reduced session interference
18%
Reduced error rate
Sykes, David M., PhD., 2004, “Productivity: How Acoustics Affect Workers’ Performance in Open Areas”
